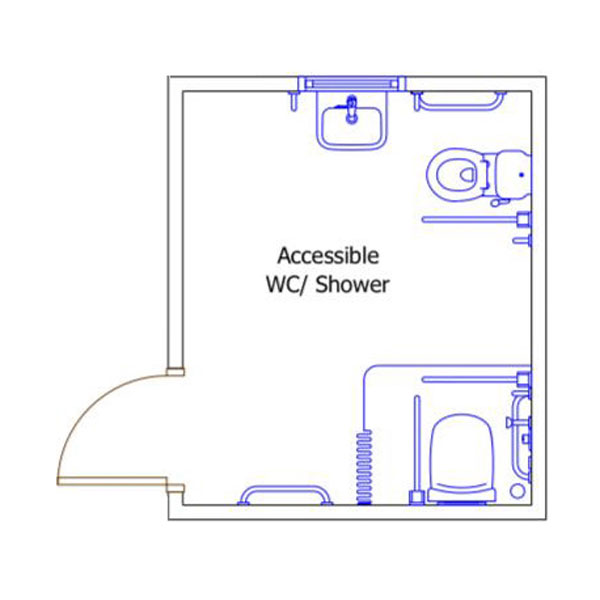

Toilet/Shower Unit:
- Size – 3.510m x 2.910m
- 75mm Insulated External Panel Plastisol coated steel exterior to 60 minute fire rated wall – 15mm Fermacell/150mm Rockwool/150mm x 44mm WDR/15mm Fermacell
- Painted internal finish
- Fatrafol PVC Roofing Membrane, 150mm roof insulation
- 92.5mm insulated plasterboard ceiling
- Polysafe welded vinyl on 18mm T&G OSB
- 150mm mineral wool & 50mm PIR underfloor insulation
- 1 No. Steel panel entrance door – 4 point locking system
- PVC D.G. Windows - 1 No. 750mm x 450mm – full opening
- 1 No. LED light fitting
- 1 No. LOT 20 Heater
- 1 No. Disabled alert alarm with pull chord
- ELCB Board

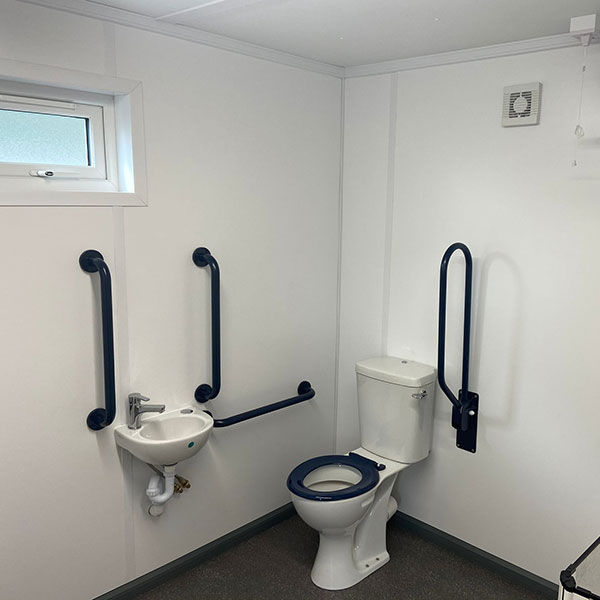

- 1 No. DocM WC, WHB and grab rails

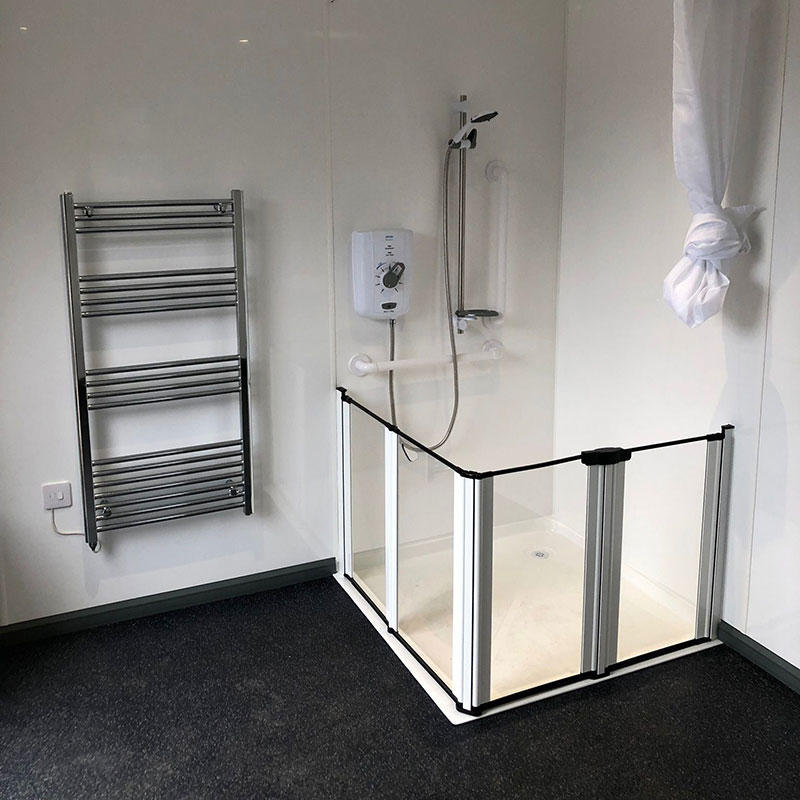

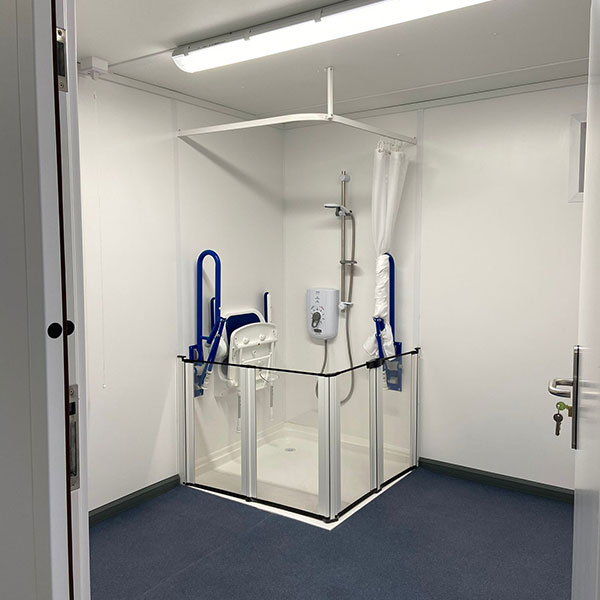

- 1 No. Level access Electric shower with grab rails, folding seat, low doors and curtain
